Nergeco R Labo 5 Fast Acting Door
High performance and ultra clean without compromising safety or style.
The Nergeco R Labo 5 fast acting door is a New Zealand assembled flexible vertical roll curtain with swift functionality designed specifically for clean processes.
R Labo 5
High Sealing and Multicomposite Construction Technology, the R Labo 5 is a fast-acting fabric door used for clean, hygiene-focused applications. Designed with an open, rounded shape that is fully accessible for dry cleaning, contamination risks are kept to a minimum.
Rapid functionality maintains temperatures and reduces airborne contamination.
Key Features
Resistant to pressure differences with intelligent safety features, the R Labo 5 enhances safety and maintains workflow within an aseptic environment.
- Fast acting
With an average speed of 1 metre per second, the prompt functionality of the R Labo 5 reduces energy consumption by maintaining temperature and pressure while reducing airborne contamination hazards.
- Clean
A weld-free smooth surface made from multi-composite material, designed specifically for high standards of cleanliness and reduction of contamination.
- Reliable
Our patented reinsertion technology delivers peace of mind. Should an accidental impact occur, the curtain will reinsert itselft without intervention, while intelligent design increases safety with a flexible soft-edge. - Safe
The soft bottom edge can be distorted both vertically and horizontally and is sensitive enough to reopen the door at the slightest impact while closing.
Key Specifications
R Labo 5 curtains offer an exceptionally high standard of cleanliness coupled with impressive functionality.
- Rapid opening and closure of 1m/s
- Sleek, smooth and quiet design with a variety of colours to choose from
- Tight sealing to withstand pressure differences, with optional sealing kits available to further enhance pressure sealing to 40 Pa
- Auto reinsertion reduces repair costs following accidental impacts
- Smart and soft closure maintains user safety
- Guaranteed durability, even in corrosive or aggressive environments
- Direct drive motor with proven reliability and enduring performance, avoiding the use of chains, reducing maintenance time and expense
- Panoramic anti-fatigue transparent windows are resistant to discolouration, enhancing visibility and safety
Enquire about the R Labo 5
Thinking of a fast acting fabric door for your next project? Talk to AceDoors today.
Tech Specs
MAXIMUM SIZE
4000 mm W x 4500 mm H
SPEED
Up to 1m/s opening and closing for a standard door.
Actual speed depends on curtain size/dimensions.
CURTAIN
- 900 g/m² PVC as standard.
- Stiffeners every 750 mm (500 mm optional)
STRUCTURE
Patented multi-composite structure (side guides, fixing junction brackets, rolling rod, closed crossbeam cover)
MOTOR
Three-phase motor from 0.55 to 1.1 kW (depending on size and selected options)
Protected under a PUR RIM cover, access from the side
CONTROL BOX
Control box up to 2m from door. Options available to be further away.
Electronic Nergeco PCB control panel as standard.
Optional Crouzet PLC
Polyester IP65 rounded Nergeco control box (option to mount to the side guide) or IP66 500mm x 400mm, depending on configuration.
Optional box 500mm x 400mm in steel IP66 or stainless steel IP67.
SAFETY
Intelligent Curtain® with spiral cable (wireless optional) and 1 set of IP67 safety beams at 280 mmH
MANUAL OPERATION
In the event of a power failure.
Standard:
- Ratchet
Optional:
- Crank Handle
- Manual Counter-Balance
- Automatic Counter-Balance with Inverter & UPS
ACTIVATION OPTIONS
- Wireless push button
- Pull cord (wireless or bracket mounted)
- Magic switch
- Radar
- Remote transmitter
- Ground loop
- Detection photocells
POWER
Standard:
- 400V three-phase – 50 Hz – differential circuit breaker 300 mA
Optional:
- 230V three-phase – 50Hz
- 230V single-phase – 50 Hz (with frequency drive)
- 440V three-phase / 60 HZ
CURTAIN COLOURS (similar to - colour sample on demand)
Standard
- WHITE RAL 9010
Optional
- YELLOW RAL 1021
- ORANGE RAL 2008
- RED RAL 3002
- DARK BLUE RAL 5010
- DARK GREEN RAL 6026
- DUST GREY RAL 7037
- BROWN RAL 8017
- BEIGE RAL 1014
- LIGHT BLUE RAL 5015
- LIGHT GREEN RAL 6018
WINDOWS
Option: Panoramic transparent windows: 1 row / 2 rows / fully transparent
STRUCTURE COLOUR
Light grey similar to RAL 9006
OTHER
Resistant to 10Pa as standard.
Optional pressure seal kits for 20Pa and 40Pa

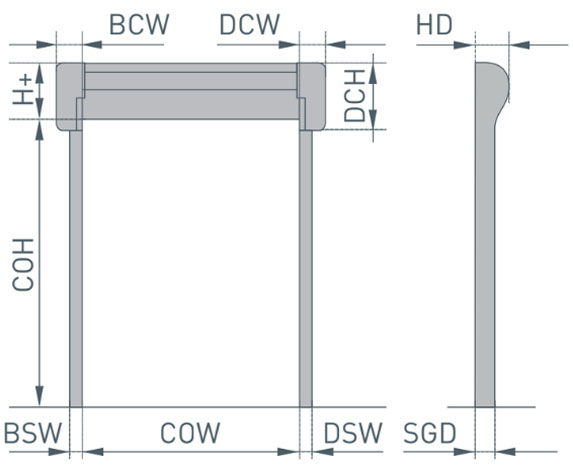

LAYOUT DIMENSIONS
| All dimensions are in mm | Ratchet or Crank Handle | Counter-Balance |
| COW – clear opening width | 1500 to 4000 | |
| COH – clear opening height | 1500 to 4000 | |
| DSW – drive side guide width | 100 | 100 |
| BSW – bearing side guide width | 100 | 200 |
| DCW – drive cover width | 340 | |
| BCW – bearing cover width | 260 | |
| DCH – drive cover height | 680 | |
| HD – header depth | 320 | |
| SGD – side guide depth | 145 | 185 |
| H+ – head room above COH | 500 | |
Manufacturing Quality
AceDoors partnered with Nergeco 30 years ago who have 35 years of skillful experience and success with the high-performance doors adapted to each trade, each process, and each building in more than 90 countries worldwide.
Assembled from our Auckland Factory
Our R Labo 5 doors are assembled in our Auckland factory, adapted to the site and requirements of the individual client. With your needs in mind, we have the agility and experience to deliver an exceptional product at a competitive rate with outstanding service.
