DOCK LEVELERS
Do you need Dock Levelers
for your next project?
Talk to one of our Specialists about our Kelley Dock Levelers today.
Select the right Loading Dock Leveler
Kelley are the world’s leaders in loading dock solutions. AceDoors have two of their best products available for your dock requirements.
What is a dock leveler?
Dock levelers bridge the gap and height difference between the dock and the trailer. They also compensate for the up and down float of the trailer bed during loading. A dock leveler includes a ramp (hinged along its rear edge) and a lip (hinged at the front of the ramp).
When not in use, the dock leveler is stored in its neutral position, flush with the loading platform floor. To use a dock leveler, the operator raises the ramp and the lip swings out. With the lip extended, the operator lowers the ramp until the lip rests on the truck.
Enquire about our
Dock Levelers today
Interested about using one of our Kelley Dock Leveler for your next project? Talk to one of our Specialists today.
Air-Powered Dock Leveler Options Available:
AFX® Air Powered Dock Leveler
The aFX® is the original Kelley air-powered dock leveler that revolutionized the industry.
AFX® Air Powered Dock Leveler
The aFX® is the original Kelley air-powered dock leveler that revolutionized the industry.
AFX® Air Powered Dock Leveler
The aFX® is the original Kelley air-powered dock leveler that revolutionized the industry.
Air Powered Dock Levelers Specifications
- Standard Features/BenefitsaFXaFX-SaFX-C
- airDefense ® Stump-Out & Freefall Protection System with 60,000lbs. Structural Dock Level Support Legs–
- Semi-Automatic 60,000 lbs. Structural Dock Level Support––
- 5” High Steel Safety Barrier Lip Design Rated to 10,000 lbs. at 4 MPH––
- Lug Style Lip Hinge & Lambada ™ Beam Structure
- Clean Pit Kit–
- High Volume, Low Pressure Lifting System
- Low Maintenance Design
- Exclusive GRAVITY LIP ™ Automatic Lip Extension
- Rated Lifetime Lip Hinge Warranty
- Patented Safe TFrame ™ Deign (Front and Rear Frame)
- NEMA 4 x Non- Metallica Push-button Control Panel (Non-Interlock Capable, Interlock Options available)
- 120V Single Phase Operation Standard (240V option available upon request)
- Open Subframe Design––
- Full Operating Range Toe Guards
- Below-dock Endloading Capability
- 16” Lip Standard (further options available)
- Integral Maintenance Strut & Lip Dock
- Heavy Duty B410-14F Dock Bumpers
- Reduced Lip Crown/ Extended Lip Chamfer Standard
- Additional Options Available upon Request
Vertical Dock Leveler Options Available:

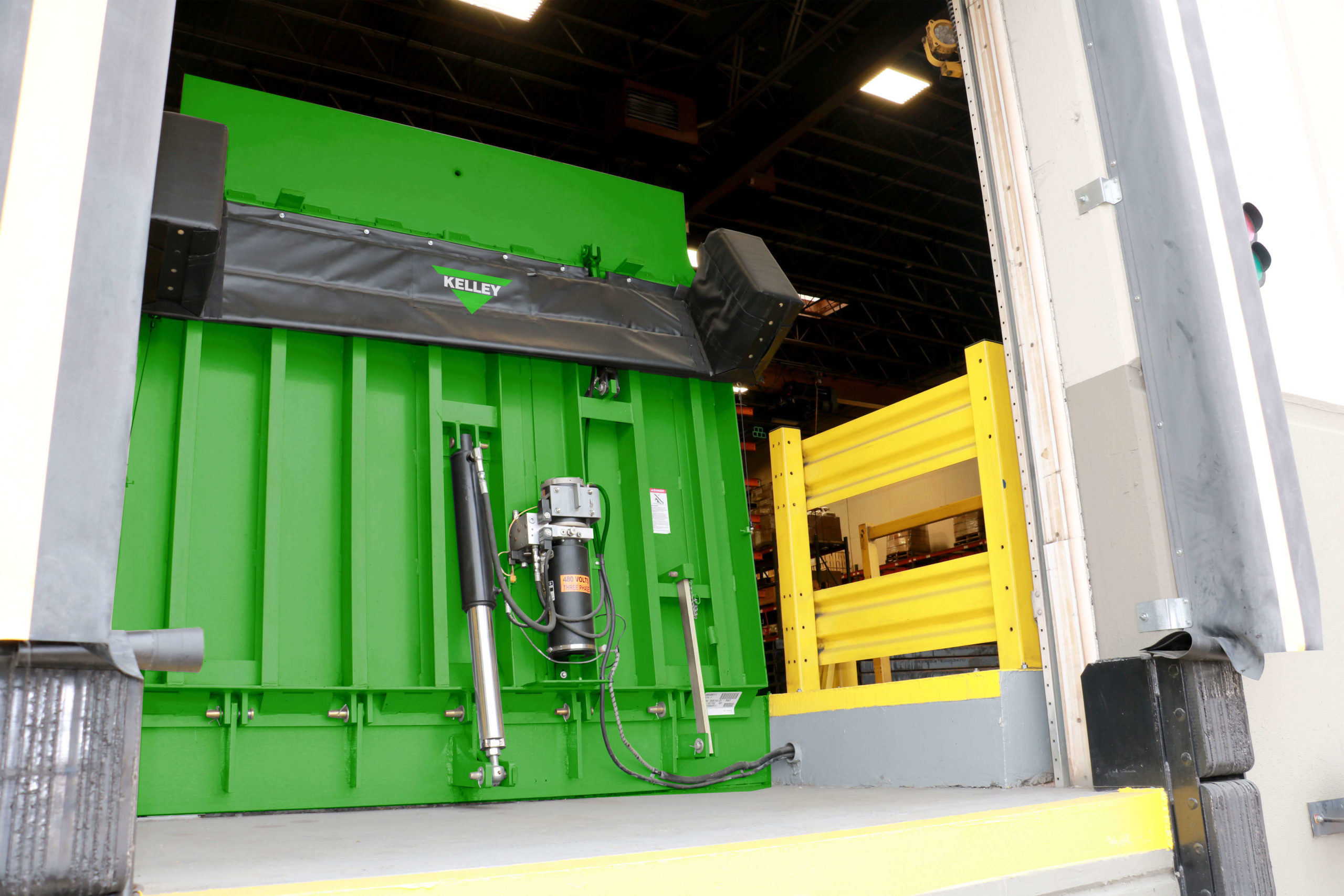

VSL Vertical Storing Dock Leveler
The VSL helps food and beverage warehouses and distribution centers sustain a clean, energy-efficient environment.
HRL Hydraulic Rail Leveler
An innovative vertical storing leveler solution designed for rail car loading and
unloading operations.
Hydraulic Dock Levelers Specifications
- Standard Features/BenefitsHP SeriesHK Series
- Lug Style Lip Hinge & Lambada ™ Beam Structure
- Exclusive GRAVITY LIP ™ Mechanical Lip Extension–
- Hydraulic Lip Extension–
- T.E.N.V Pump/Motor Assembly & Regenerative Hydraulics
- NEMA 4 x Non- Metallica Push-button Control Panel (Non-Interlock Capable, Interlock Options available)
- Single Phase (120V, 208V, 240V) or Three Phase (208V, 20V, 480V, 575V) Power
- Hydraulic Velocity Fuse Deck Stop
- Open Subframe Design
- Patented SafeTFrame ™ Deign (Front and Rear Frame)
- Automatic Retracting 60,000 lbs. Structural Dock Level Support Legs
- Full Operating Range Toe Guards
- Below-dock Endloading Capability
- 16” Lip Standard (further options available)
- Integral Maintenance Strut & Lip Dock
- Heavy Duty B410-14F Dock Bumpers
- Reduced Lip Crown/ Extended Lip Chamfer Standard
- Additional Options Available upon Request
