Process Hinged Doors
The perfect door for
high traffic access
When you’re looking for control on temperature, access and hygiene management.

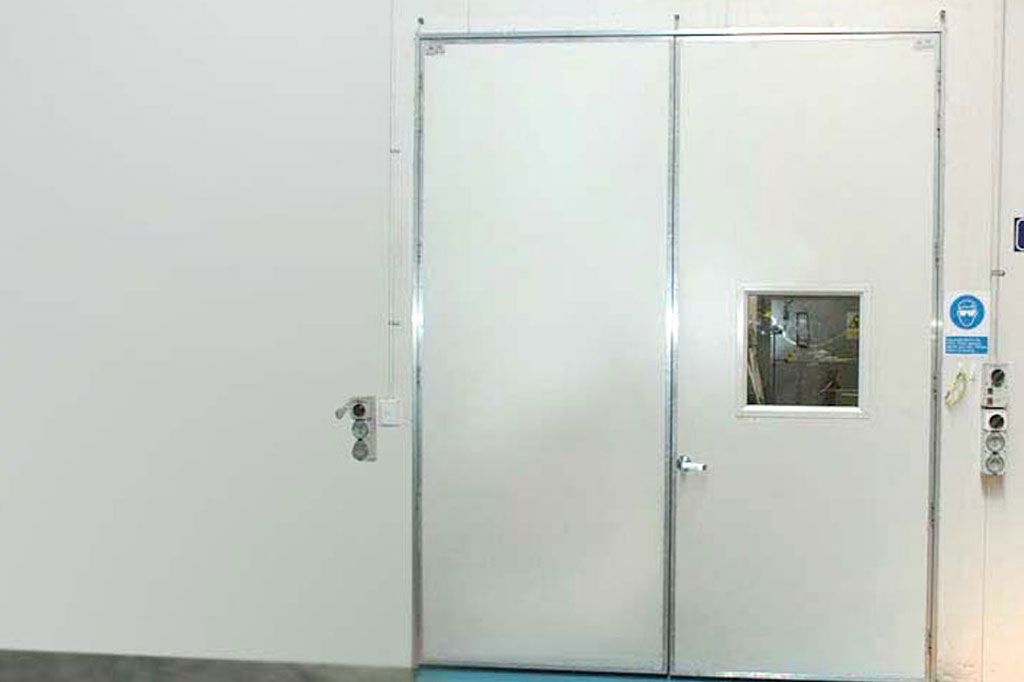

AceDoors Process Hinged Doors
The ideal choice for high traffic zone separation, our hinged doors enable staff to move between work zones, minimising energy loss and contamination risk. Our hinged doors deliver ease of access while maintaining balanced temperature, where almost every hygiene condition is catered for with the wide range of materials available.
Key Features
Manufactured with double-leaf gaskets to ensure complete sealing, meaning minimised energy loss and contamination risk.
Durable and long lasting, our products are low maintenance yet built to last using high-grade, hard-wearing materials.
Choose either timeless mill finish extrusion, or Titania to match the door leaf colour, with optional ribbed texture or smooth panel finish.
Key Specifications
Custom sizing that can be adapted to suit as either a single or double door for both commercial and industrial needs.
Optional extra vision panel uses specialised toughened glass, ideal for fast paced and high traffic work environments.
Minimise energy loss and contamination risk with superior closure and sealing with optional electronic locking available for higher security clearance.
Enquire about our Process Hinged Doors.
Interested about using our Process Hinged Doors for your next project? Talk to one of our Specialists today.
Tech Specs
Acceptable Manufacturer
Door shall be AceDoors Process Hinged Doors as supplied by AceDoors Systems 2013 Ltd.
Door Leaf
A. Fabricated from an 50mm thick panel 0.59BMT G2 Coloursteel panel finish, with titania finish.
B. Leaf from EPS.
C. Door leafs fitted with 3 heavy-duty s/s butt hinges/flush bearing hinges.
D. Door leaf fitted with PVC double gasket seals.
E. The bottom rail edge to contain a silicone u-gasket to form a weatherproof threshold seal.
Door Frame
A. Robust 1 piece aluminum profiles to suit 50mm/75mm/100mm wall thickness.
B. Back flashing to suit thicker walls.
Hardware
A. Standard legge fortune latchset. Lockset or Pacific Lockset/Latchset available.
Finish
A. Standard aluminum mill finish alloy extrusions with frame.
Door Leaf
A. Vision panel – Standard sizes 500mmx500mm/800mmx200mm using 4 toughened glass or polycarbon.
B. Automatic door closers.
C. S/S D Handle
D. S/S Kick Plates
E. S/S Push Plates
F. Air Vents
G. Hold opens door stops.
H. Tower bolts (Manual or spring loaded), manual standard on double doors.
I. PIR or XFlam panel
J. Powdercoated aluminum extrusions.
Manufacturing Quality
With over 30 years’ experience in the market, we know how to deliver a product with longevity, with less overall maintenance requirements, and lower temperature loss, resulting in greater energy savings.
Manufactured from our Auckland Factory
All our commercial refrigeration doors are manufactured in our Auckland factory, adapted to the site and requirements of the individual client. With your needs in mind, we have the agility and experience to deliver an exceptional product at a competitive rate with outstanding service.
